CNC Turned Dowel
CNC turning centers with carbide tools ensure precision and smooth surface finish. Threading, knurling, polishing, and cleaning are applied as secondary steps.
2.Our Capabilities

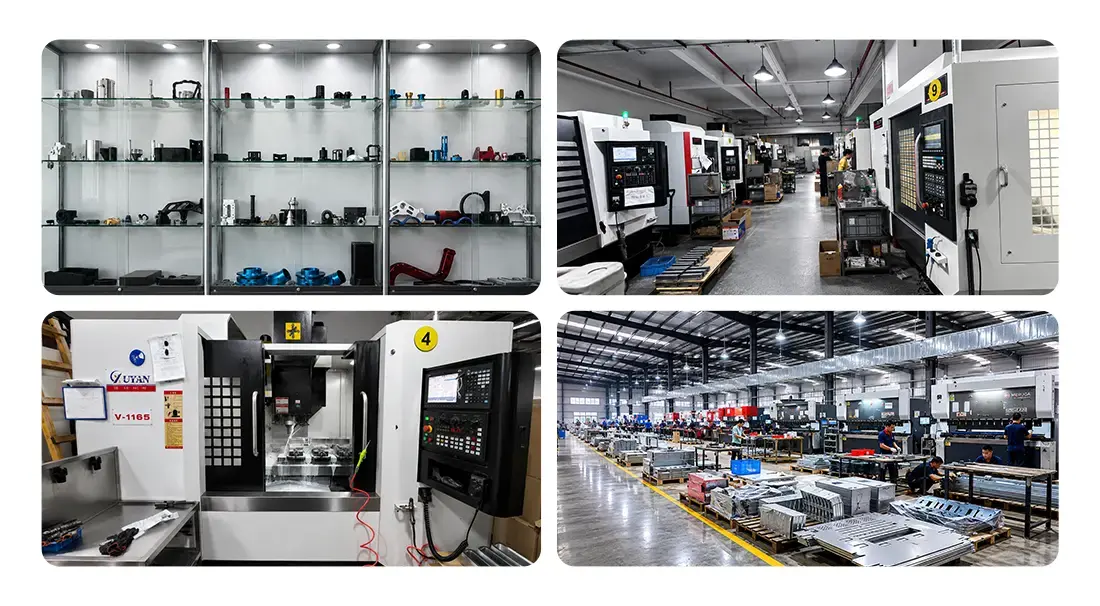

We offer stainless steel CNC turning with passivation. 15 CNC machines support stable production capacity.
3.Quality Control

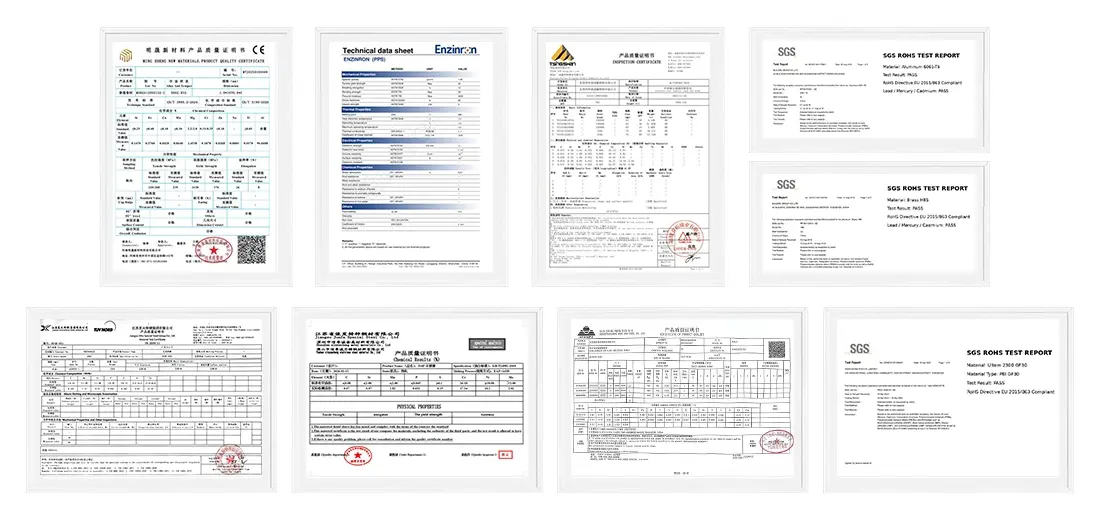

Spectrometer incoming inspection
In-process measurement with gauges
Final CMM inspection
ISO 9001 compliance
CNC Turned Dowel – Precision Alignment Components for Industrial Applications
When repeated consistency and perfect alignment are needed for an assembly, CNC Turned Dowel components from Shenzhen Ruiyihang Technology can meet your needs. We've been making handmade metal dowels with specs as tight as 0.01 mm since 2008. Our 15 CNC turning centers and engineers with an average of 15+ years of experience in the field help us do this. We strictly follow ISO 9001 when making our products. We use an analyser to check the material, a gauge to measure the progress, and a final CMM review to make sure that the dimensions and surface quality are always correct.
What Makes Our CNC Turned Dowel Manufacturing Different?
Engineering-First Approach
You'll work directly with our engineers—no middlemen, no miscommunication. We review your drawings in detail and provide practical recommendations on:
- Material selection for your operating environment
- Fit type optimization (press fit, slip fit, or transition fit)
- Tolerance adjustments to improve manufacturability
- Surface finish requirements based on your application
This collaborative process reduces errors before production starts. It saves you time and cost.
Advanced Manufacturing Capabilities
Our product production uses carbide tooling on precision turning centers. This ensures consistent diameter control and superior surface smoothness.
Secondary operations include:
- Threading for specialized fastening needs
- Knurling for enhanced grip
- Polishing to achieve mirror-like finishes
- Passivation treatment for stainless steel parts
We handle complex geometries and special machining requirements that standard suppliers often refuse.
Fast Turnaround You Can Rely On
Speed matters in today's manufacturing environment. Our streamlined workflow delivers:
- Quick quotations after drawing review
- Sample production in 7 days (standard timeline)
- 3-day expedited service available for simple parts
Whether you need prototypes or full production runs, we maintain the same quality standards and responsive communication throughout.
Technical Specifications
| Item | Description |
|---|---|
| Material | Stainless Steel 304 |
| Process | CNC Turning / Lathe |
| Surface Finish | As machined finish |
| Size | XX mm × XX mm |
| Tolerance | ±0.02 mm (or per ISO 2768 / customer drawing) |
| Surface Roughness | Ra 1.6 |
| Drawing Format | 2D (PDF/DWG), 3D (STEP/IGS) |
| Production Volume | Prototype to Mass Production |
| Inspection | 100% Inspection / Sampling Inspection |

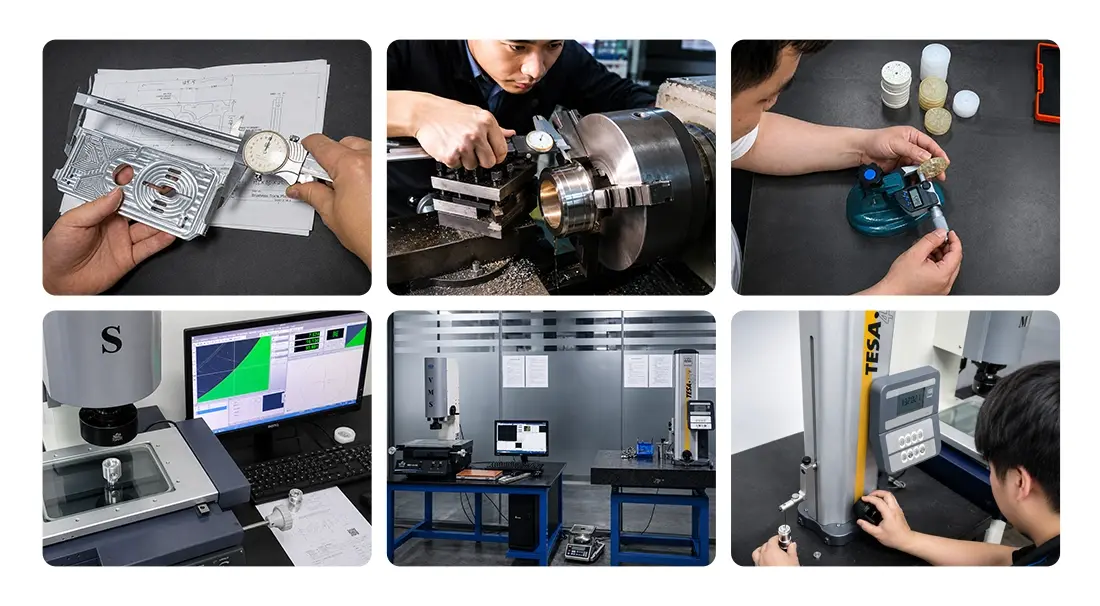

Quality Assurance Process
Quality isn't just a promise—it's built into every production stage.
Incoming Material Inspection
We use spectrometer testing to verify material composition before machining begins. This prevents costly mistakes from substandard raw materials.
In-Process Control
Operators measure critical dimensions using precision gauges throughout the turning process. This catches deviations immediately, not after the batch is complete.
Final Verification
CMM inspection confirms all dimensions meet your drawing specifications. Surface roughness testing ensures finish quality matches requirements.
Our ISO 9001 certified quality management system documents every step. You receive full traceability with each order.
Custom Solutions for Complex Requirements
We don't manufacture standard products. Every CNC Turned Dowel is made to your exact specifications.
Our team excels at:
- Developing custom machining processes for unusual geometries
- Working with difficult-to-machine materials
- Accommodating small-batch orders without minimum quantity restrictions
- Providing FDA-compliant materials for food-contact applications
When other manufacturers say "it can't be done," we find a way to make it work.
FAQ
Q: Why dowel pins are used in industrial parts?
Use of dowel pins allows for precise placing and alignment of parts, ensuring accurate part location and repeated assembly.
Q: What kind of standards do dowel pins need?
Insanely tight standards are important. This is usually within ±0.01 mm or better, but it depends on the type of fit needed, like press fit or slip fit.
Q: Are dowel pins available in special sizes?
Absolutely, we can make both standard and special dowel pins based on your plans and specific fit needs.
Q: What kind of things do you use?
Forgings are made from stainless steel, aluminium, brass, and different types of industrial plastics. Choosing the right material depends on the needs of your application. Our engineers can help you choose the best choice.
Q: What are your plans for dealing with quality problems?
We'll remanufacture the item within a week and pay for the shipping if there are quality issues within the same month of delivery.
Global Logistics Made Simple
We know that sending goods across foreign borders can be hard. Because of this, we offer door-to-door shipping services that work best for small orders.
For your ease, you can have duties and delivery arrangements taken care of at the same time. We'll take care of the details while you work on your job.
Contact Us
Ready to discuss your CNC Turned Dowel requirements? Email our engineering team at bill@bldmachining.com for a fast, detailed quotation.
